技術特點

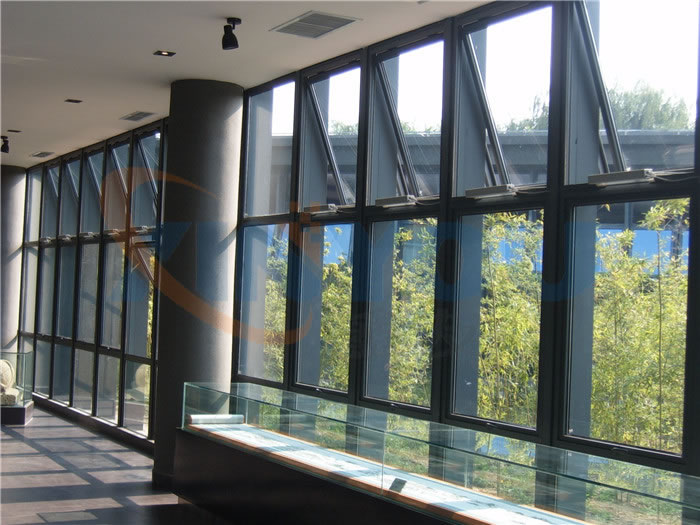

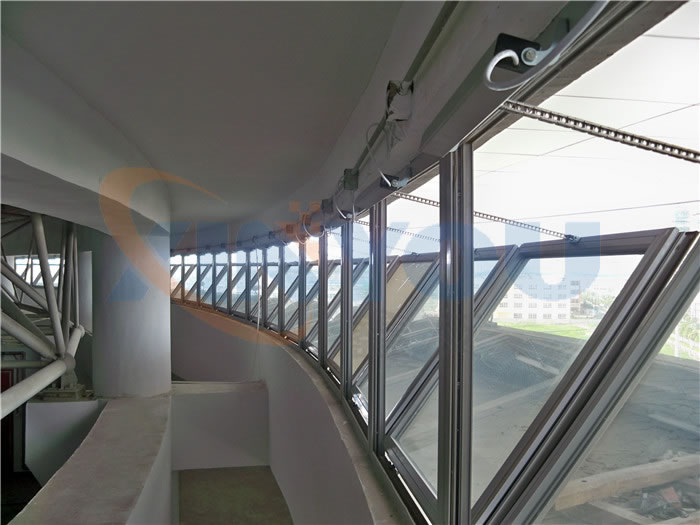

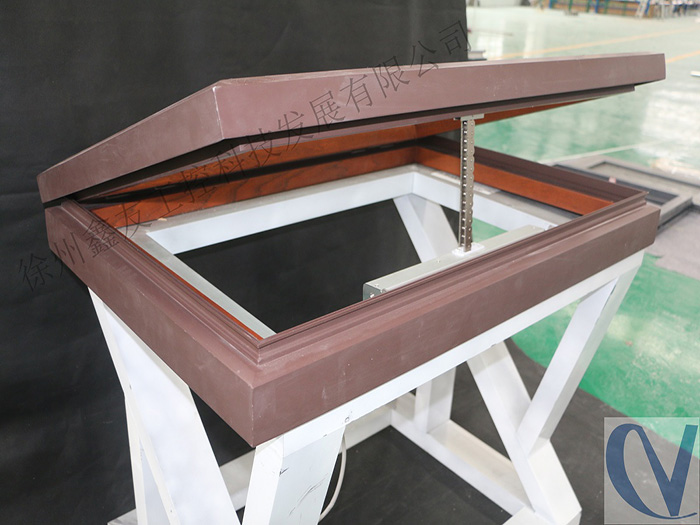

l 單鏈條驅動,運行平穩,隱藏安裝。適合上懸窗、下懸窗、中懸窗、斜屋頂窗、排煙天窗等多種窗型的安裝與使用。
l 大于30000次推出及拉回的壽命設計,經負載測試合格。
l 內置接線端子,方便布線滿足消防布線的要求。
l 保護等級:IP32E。
l 開啟行程100-800mm,可根據用戶需求定制。
l 產品符合國標:GB/T 19001-2008,通過歐盟CE認證和中國***消防電子產品認證。
TechnicalFeatures
◆ Single chaindrive structure, stable running, hidden installation. Especially suitable for various top-hinged window, bottom-hingedwindow, center-pivoted window, sloping roofwindow &smoke ventilation skylights.
◆ Designed life: more than 30000 timespush-pull cycles.
◆ Terminalsbuilt-in, convenient for fire control wiring.
◆ Protection class:IP32E.
◆ The stroke can becustomized according to customer requirements.
◆ In conformitywith GB/T 19001-2008, passed the CE &CCCF certification.

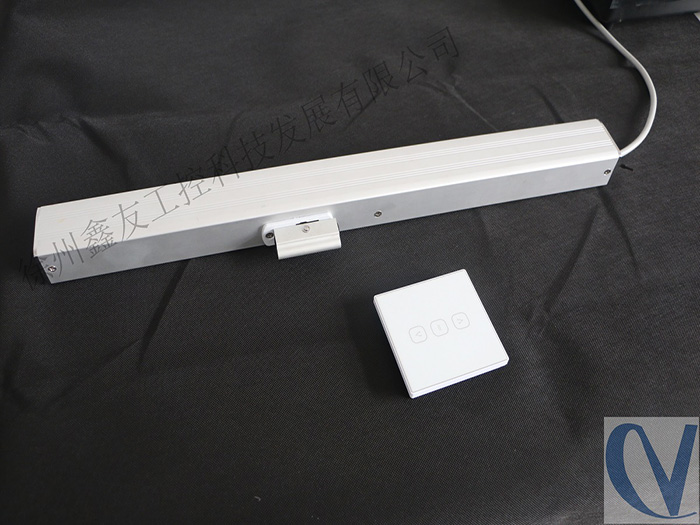

產品結構圖/ Product structure
技術參數/Technical Date
電壓 |
Voltage |
24V DC/220V AC |
***大電流 |
Current |
0.8A |
功率 |
Power |
24W |
運行速度 |
Speed |
6mm-10mm/s |
***大推力 |
Maximum force |
450N |
***大行程 |
Maximum stroke |
800mm(可定制) |
使用壽命 |
Life |
>30000times |
保護等級 |
Protection class |
IP32E |
