技術特點
◆螺桿由優質鋼材制成,推力強勁,運行穩定。特別適用于大型活動百葉窗、各種大型上懸窗、下懸窗、斜屋頂窗、重型天窗等窗型的開啟,用于消防排煙和自然通風。
◆大于30000次推出及拉回的壽命設計,經負載測試合格。
◆全封閉式內螺紋驅動結構,封閉性好,適用于粉塵風沙等空氣顆粒污染較大的環境使用。
◆內置行程電子過載保護電路,并可多機聯接驅動。
◆保護等級:IP65。
◆安裝程序簡易,開啟行程50-1000mm,可根據用戶需求定制。
◆產品符合國標:GB/T 19001-2008,通過歐盟CE認證和中國***消防電子產品認證。
Technical Features
◆ The screw is made of high quality steel, strong thrusting, stable running. Especially suitable for various large movable louvers, top-hinged window, bottom-hinged window, sloping roof window and heavy window. Commonly used in smoke exhaust and ventilation.
◆ Designed life: more than 30000 times push-pull cycles.
◆ Inner screw electric window actuator, super seal ability.
◆ Overload protection circuits built-in, linkage of multi-machines.
◆ Protection class: IP65.
◆ The stroke can be customized according to customer requirements.
◆ In conformity with GB/T 19001-2008, passed the CE &CCCF certification.

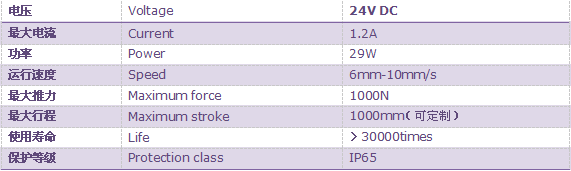

技術參數/Technical Date
